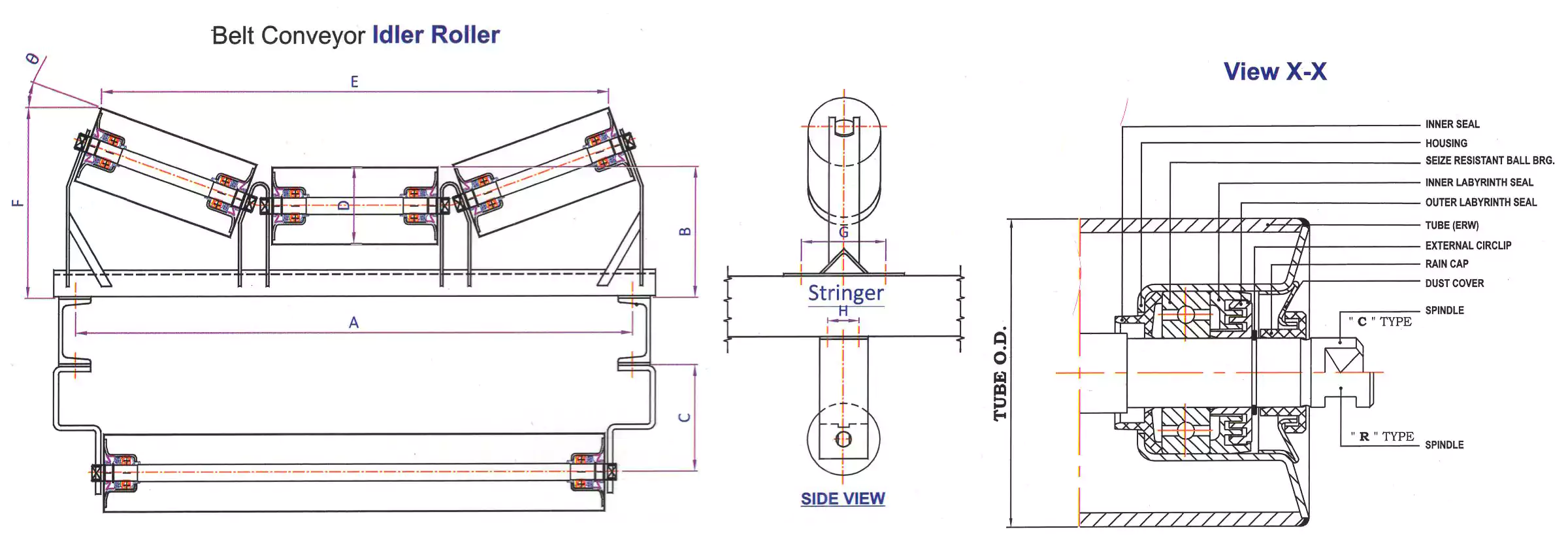

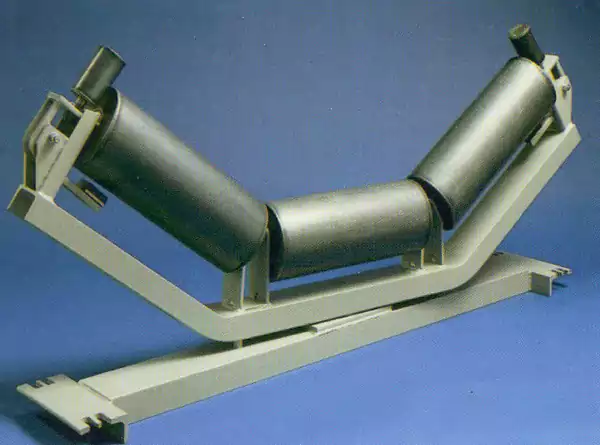

Standard Frame and Bracket Dimension details as per India Standard :

Mounting Centres (A)	Belt width + 290mm for belts widths up to 1400 mm Belt widths + 300 for belts over 1400 mm
Centre Roller Top Height (B) for Shape P from Stringer Top side	Height (B) in mm	Roller Dia (D) in mm	Belt Width Range in mm
	200	Up to 101.6	Up to 1000
	215	Up to 101.6	1200 - 1400
	225	114.3 & 127	Up to 1000
	240	114.3 & 127	1200 - 1600
	275	139.7, 152.4, 159	500 - 2000
	290	168.3	500 - 2000
Roller Centre For Flat Carrying Shape M from Stringer top	100mm for all belt width
Return Roller Centre (C) from stringer bottom side.	160mm up to 139.7mm roller diameter (D) 200 mm 152.4mm & 168.3mm roller diameter (D)
Troughing Angle (e)	0° for Shape M, 10° & 15° shall be used for idler Sets of Shape N as per requirement of desi, 20°/25°/30°/35°/40°/45°/50° shall be used for shape M as per requirement of design.
Carrying Width (E)	It varies with different Troughing Angle and different Roller Diameter
Roll height (F)	It varies with different Troughing Angle and different Roller Diameter
Slots Hole Centre (G) for Carrying frame	200mm for shape N&P and 70 mm for shape M with slot size 30mmx18mm
Slots Hole Centre (H) for Return Idler Bracket	65mm for Shape M and 100mm for Shape N

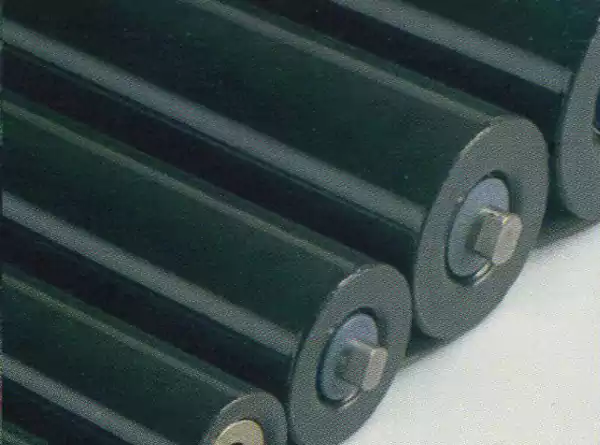

Standards for Idlers :
Following standards are followed for Idler Manufacturing :

IS 8598
IPSS-2-03-004-85
DIN 22107
ISO 1537
CEMA
Tailor made (as per requirement)

Dimension Details of Belt conveyor Idler is a little different for each and every standard.
However, generally customer prefers Tailor made products, Suiting to their site requirement.
